Blackburn Blackburn

Blackburn Blackburn

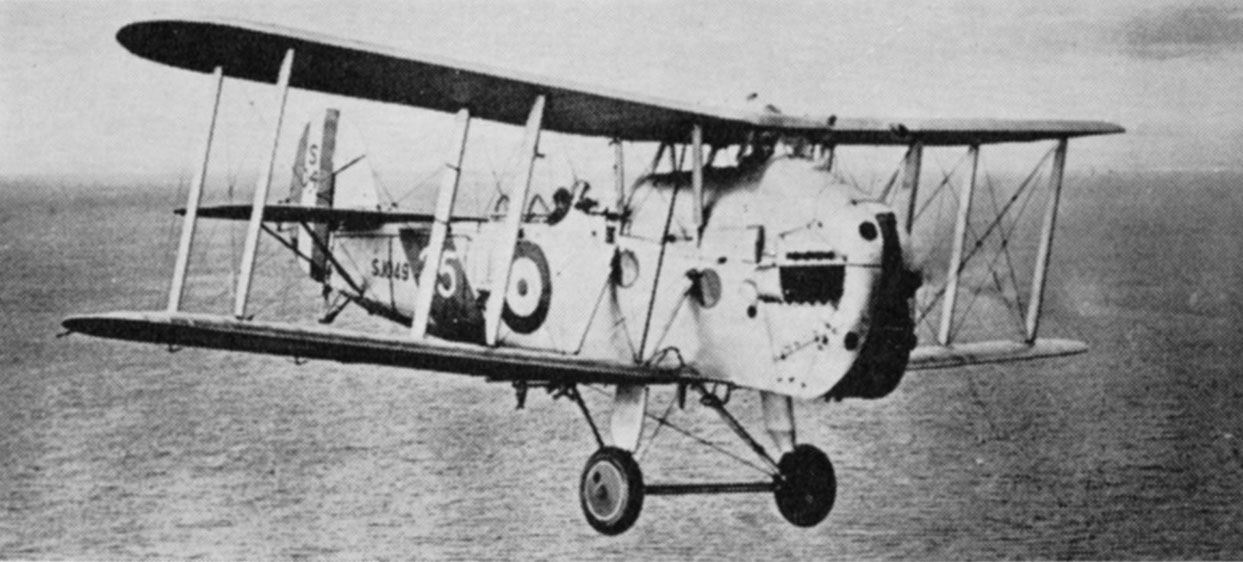

The Blackburn R-1 Blackburn was a 1920s British single-engine fleet spotter / reconnaissance aircraft built for the Fleet Air Arm of the Royal Navy. A total of 44 aircraft were built before  the type became obsolete in 1931, when they were replaced by the Fairey IIIF.

General characteristics

  • Crew: three
  • Length: 36 ft 2 in (11.02 m)
  • Wingspan: 45 ft 6 in (13.87 m)
  • Height: 12 ft 6 in (3.81 m)
  • Wing area: 650 ft2 (60.40 m2)
  • Empty weight: 3,929 lb (1,786 kg)
  • Loaded weight: 5,962 lb (2,710 kg)
  • Max. takeoff weight: 6,648 lb (3,022 kg)
  • Powerplant: 1 × Napier Lion 12-cylinder W-block inline engine, 450 hp (346 kW)

Performance

  • Maximum speed: 122 mph (157 km/h) at 3,000 ft
  • Service ceiling: 12,950 ft (3,950 m)
  • Rate of climb: 690 ft/min (210 m/min)
  • Endurance: 4.25 hours

Armament

  • Guns: 2 × .303 in (7.7 mm) Lewis guns
