Hawker Tornado

Design and Development

Shortly after the Hawker Hurricane entered service, Hawker began work on its eventual successor. Two alternative projects were undertaken: the Type N (for Napier), with a Napier Sabre engine, and the Type R (for Rolls-Royce), equipped with a Rolls-Royce Vulture power plant. Hawker presented an early draft of its ideas to the Air Ministry which advised that a specification was in the offing for such a fighter. The specification was released by the ministry as Specification F.18/37 after further prompting from Hawker. The specification called for a single-seat fighter armed with twelve 0.303 in (7.7 mm) machine guns, a maximum speed of 400 mph (644 km/h) at 15,000 ft (4,600 m) and a service ceiling of 35,000 ft (10,700 m) were required. Two prototypes of both the Type N and R were ordered on 3 March 1938.

Technical Description

Both prototypes were very similar to the Hurricane in general appearance, and shared some of its construction techniques. The front fuselage used the same swaged and bolted duralumin tube structure, which had been developed by Sydney Camm and Fred Sigrist in 1925. The new design featured automobile-like side-opening doors for entry, and used a large 40 ft (12 m) wing that was much thicker in cross-section than those on aircraft like the Spitfire. The rear fuselage, from behind the cockpit, differed from that of the Hurricane in that it was a duralumin, semi-monocoque, flush-riveted structure. The all-metal wings incorporated the legs and wheel-bays of the wide-track, inward-retracting main undercarriage. The two models were also very similar to each other; the R plane had a rounder nose profile and a ventral radiator, whereas the N had a flatter deck and a chin-mounted radiator. The fuselage of the Tornado ahead of the wings was 12 in (30 cm) longer than that of the Typhoon, the wings were fitted 3 in (76 mm) lower on the fuselage, and the radiator was located beneath the fuselage. The X-24 cylinder configuration of the Vulture required two sets of ejector exhaust stacks on each side of the cowling, and that the engine was mounted further forward than the Sabre in order to clear the front wing spar.

Flight Trials

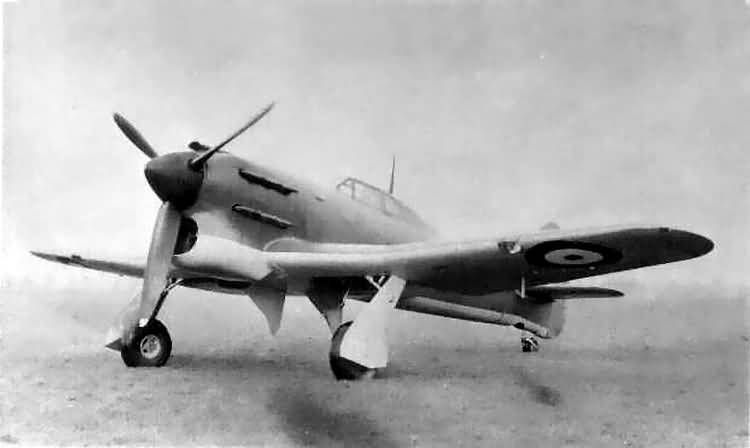

On 6 October 1939, the first prototype (P5219) was flown by P.G. Lucas, having first been moved from Kingston to Langley for completion. Further flight trials revealed airflow problems around the radiator, which was subsequently relocated to a chin position. Later changes included increased rudder area, and the upgrading of the powerplant to the Vulture Mark V engine. Hawker production lines focused on the Hurricane, with the result that completion of the second prototype (P5224) was significantly delayed. It featured the chin radiator, additional window panels in the fairing behind the cockpit, and the 12 .303 in machine guns were replaced by four 20 mm Hispano cannon. It was first flown on 5 December 1940, and was powered by a Vulture II, although as in the case of the first prototype, a Vulture V was later installed.

Production

In order to avoid upsetting the Hurricane lines, production was sub-contracted to Avro (another company in the Hawker group) in Manchester and Cunliffe-Owen Aircraft in Eastleigh, with orders for 1,760 and 200 respectively being placed in 1939. However, only one of these aircraft, from Avro, was ever built and flown, this being R7936. Shortly after its first flight at Woodford, on 29 August 1941, the Vulture programme was abandoned, followed closely by the cancellation of the Tornado order. At that time four aircraft were at various stages of production at the Avro plant at Yeadon, West Yorkshire.

Vulture Engine

The Vulture was effectively cancelled by Rolls-Royce in July 1941, partly due to the problems experienced in its use on the Avro Manchester, but mostly to free up resources for Merlin development and production. The Rolls-Royce Merlin was also starting to deliver the same power levels. However, the Vulture engine installation in the Tornado was relatively trouble free and the aircraft itself had fewer problems in flight than its Sabre-engined counterpart. The third prototype (HG641), the only other Tornado to fly, was flown on 23 October 1941, powered by a Bristol Centaurus CE.4S sleeve valve radial engine. This Tornado was built from two incomplete production airframes (R7937 and R7938), was a testbed for a number of Centaurus engine/propeller combinations and was the progenitor of the Hawker Tempest II.
