Japanese battleship Tosa

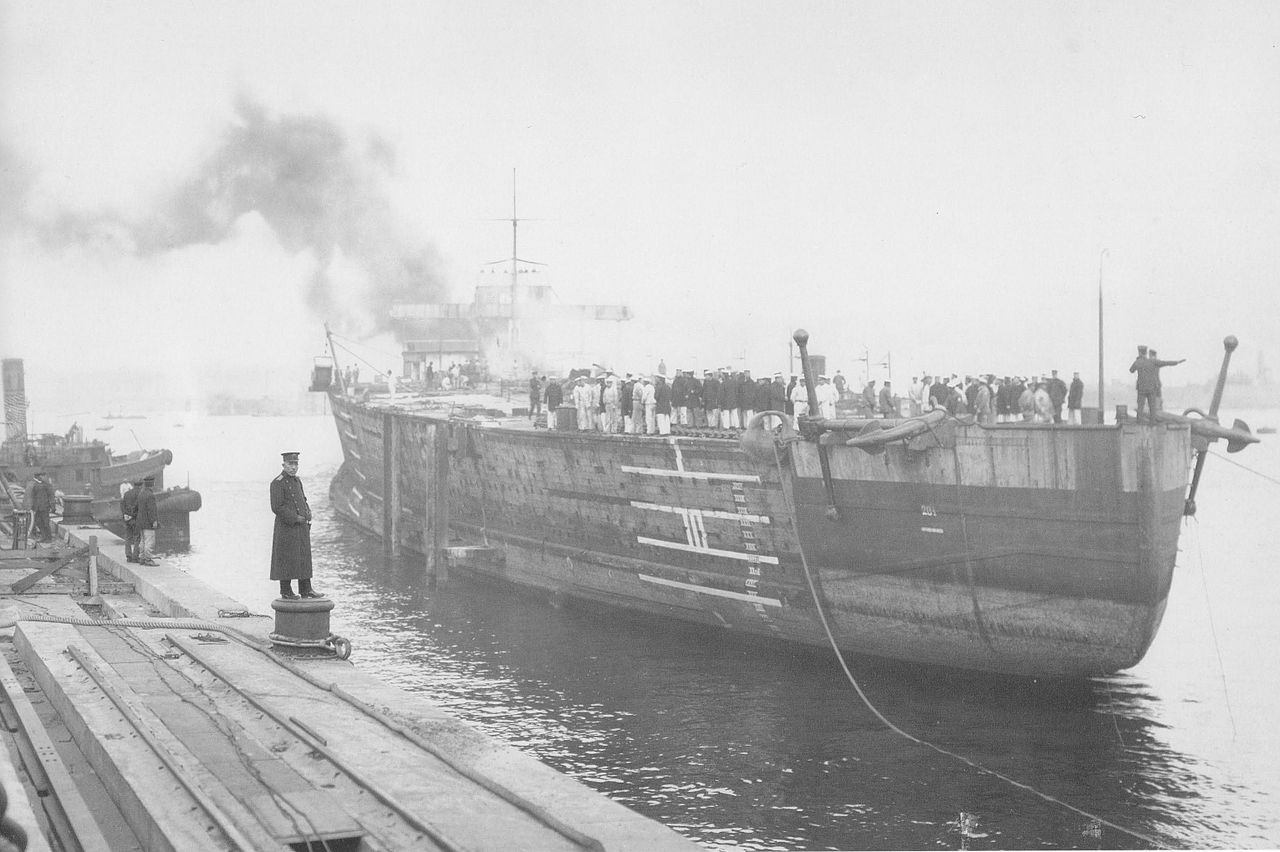

Tosa was a planned battleship of the Imperial Japanese Navy. She was envisioned as the lead ship of the Tosa class of two 39,900-long-ton (40,540 t) ships (the second ship Kaga was completed as an aircraft carrier). The battleships would have been armed with ten 410 mm (16.1 in) guns and bring Japan closer to its goal of an “Eight-four” fleet (eight battleships and four battlecruisers). However, after the Washington Naval Conference and the signing of the Washington Naval Treaty, all work on the ship was halted. With the vessel required to be destroyed in accordance with the terms of the treaty, the incomplete Tosa was then subjected to various tests to gauge the effect of Japanese weaponry before being scuttled on 9 February 1925.

General characteristics
Class and type:	Tosa-class battleship
Displacement:	39,900 long tons (40,540 t) (standard)44,200 long tons (44,909 t) (full load)
Length:	234.1 m (768 ft 1 in)
Beam:	30.5 m (100 ft 1 in)
Draught:	9.4 m (30 ft 10 in)
Installed power:	12 × water-tube boilers 91,000 shp (67,859 kW)
Propulsion:	4 shafts; 4 × steam turbines
Speed:	26.5 knots (49.1 km/h; 30.5 mph)
Range:	5,000 nmi (9,300 km; 5,800 mi) at 16 knots (30 km/h; 18 mph)
Complement:	1,333
Armament:	5 × twin 41 cm (16.1 in) guns 20 × single 14 cm (5.5 in) guns4 × single 76 mm (3 in) AA guns 8 × 61 cm (24 in) torpedo tubes
Armour:	Deck: 100 mm (4 in)Bulkheads: 230–280 mm (9–11 in)Belt line: 250–280 mm (10–11 in)Bridge: 250–360 mm (10–14 in)Barbettes: 230–300 mm (9–12 in)Conning tower: 360 mm (14 in)

•

•

•

•

•

•

•

•

•
