Republic XP-72

Republic XP-72

The Republic XP-72 was an American prototype interceptor fighter developed as a progression of the P-47 Thunderbolt design. The XP-72 was designed around the Pratt & Whitney R-4360 Wasp Major 28-cylinder air-cooled radial engine with a supercharger mounted behind the pilot and driven by an extension shaft from the engine. The armament consisted of six 50 caliber wing-mounted machine guns and underwing racks for two 1,000 lb bombs.

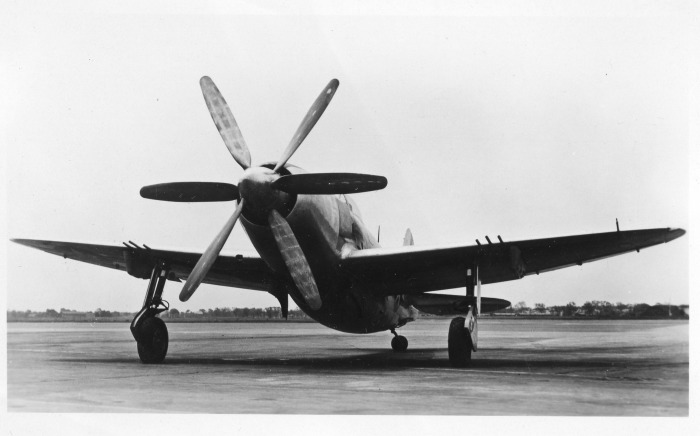

The XP-72 flew for the first time on 2 February 1944, equipped with a four-bladed propeller. The second prototype was completed on 26 June 1944 and was equipped with an Aero-Products contra-rotating propeller. As the XP-72 displayed exceptional performance during flight tests, an order for 100 production aircraft was awarded. The order included an alternate armament configuration of four 37 mm cannon. By this time, World War II had progressed to where the need was for long-range escort fighters and not high-speed interceptors. Furthermore, the advent of the new turbojet-powered interceptors showed greater promise for the interceptor role. Thus, the production order for the P-72 was cancelled.

First Prototype 436598

•

•

•

•

•

•

Second Prototype 436599

•

•

•

•
